Bottle Cage
This support article applies to all Arcane Layers vacuum-insulated bottle cages.
Dimensions
| Variation | Cage Depth from Frame | Bottom Screw to Cage Bottom | Top Screw to Bottle Top |
|---|---|---|---|
| Hydroflask 24 | 87 mm | 47 mm | 175 mm |
| Yeti 18 | 91 mm | 41 mm | 160 mm |
| Yeti 26 | 101 mm | 48 mm | 169 mm |
| Owala 24 | 91 mm | 38 mm | 162 mm |
Make sure your bottle fits within your bike frame before ordering. Bikes with smaller frames may not accommodate larger bottles.
Product Care
Hand wash with warm water and mild dish soap. Avoid abrasive cleaners or scrubbers.
Installation Instructions

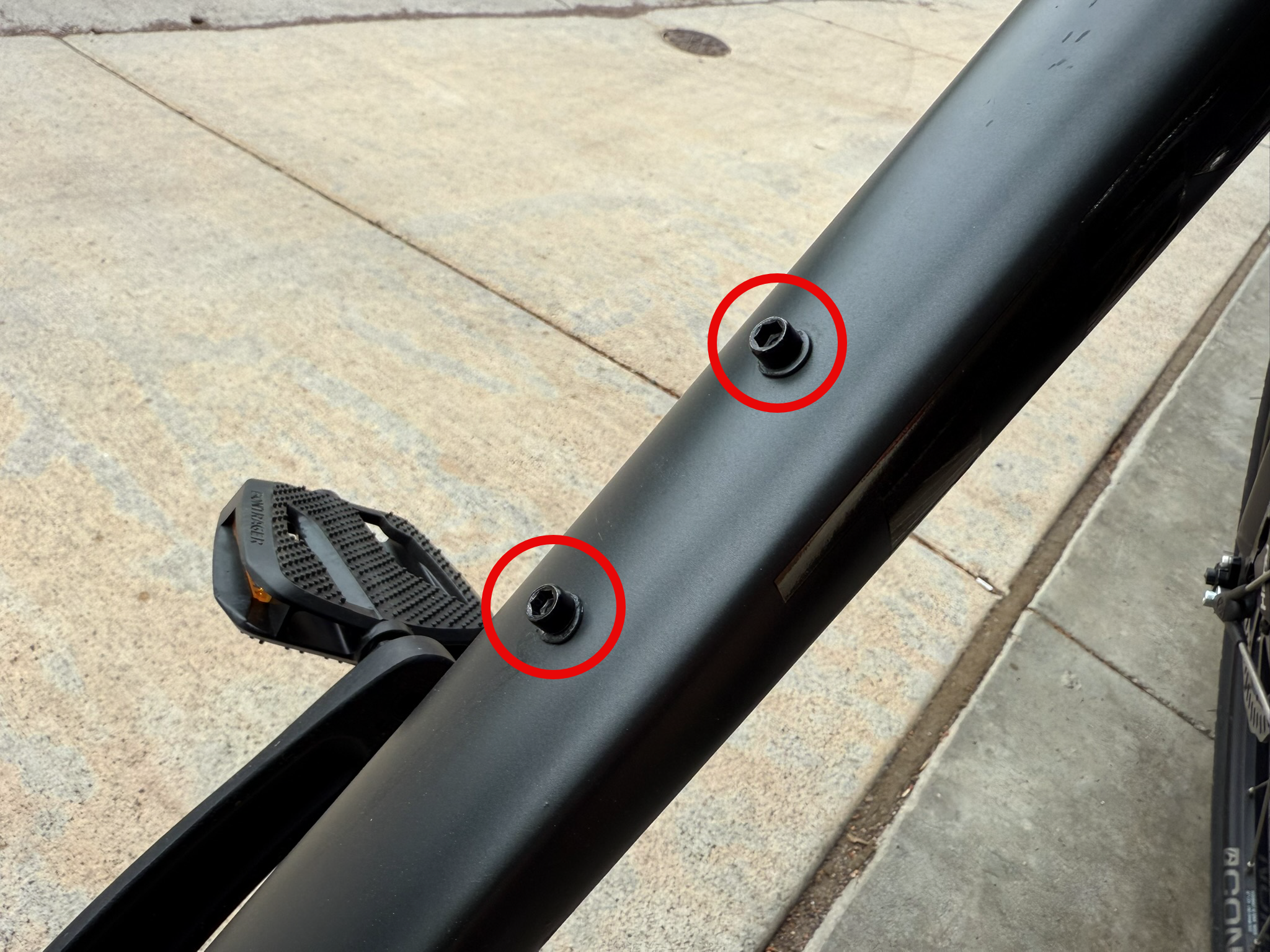

- Locate the two bottle cage mounting screws on your bike. Note that a bottle cage may already be attached.
- Remove both screws using an Allen key.

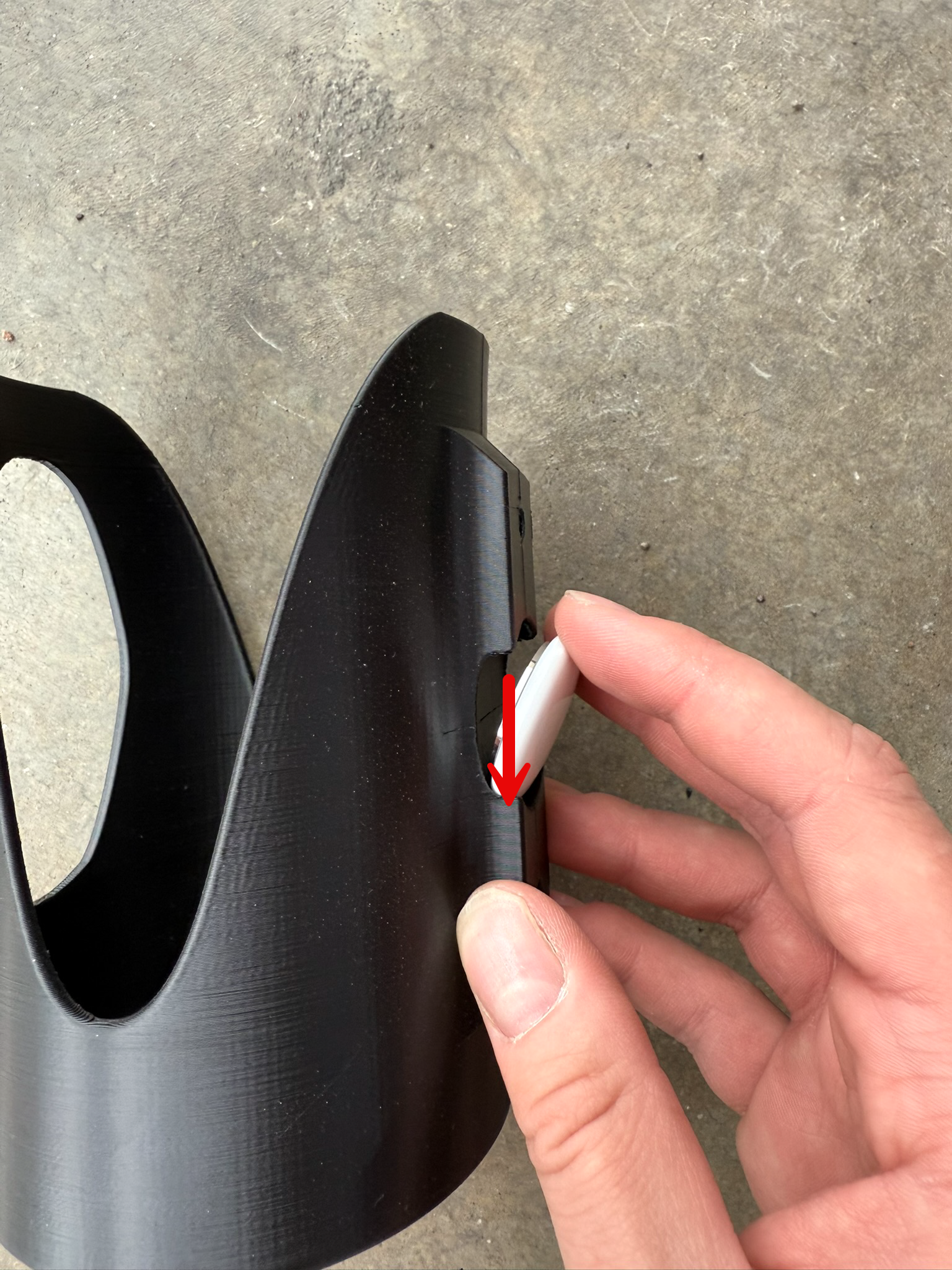

- (Optional) Insert an AirTag into the bottle cage by seating the bottom of the AirTag into the AirTag pocket, then swiveling the top in until it snaps into place.

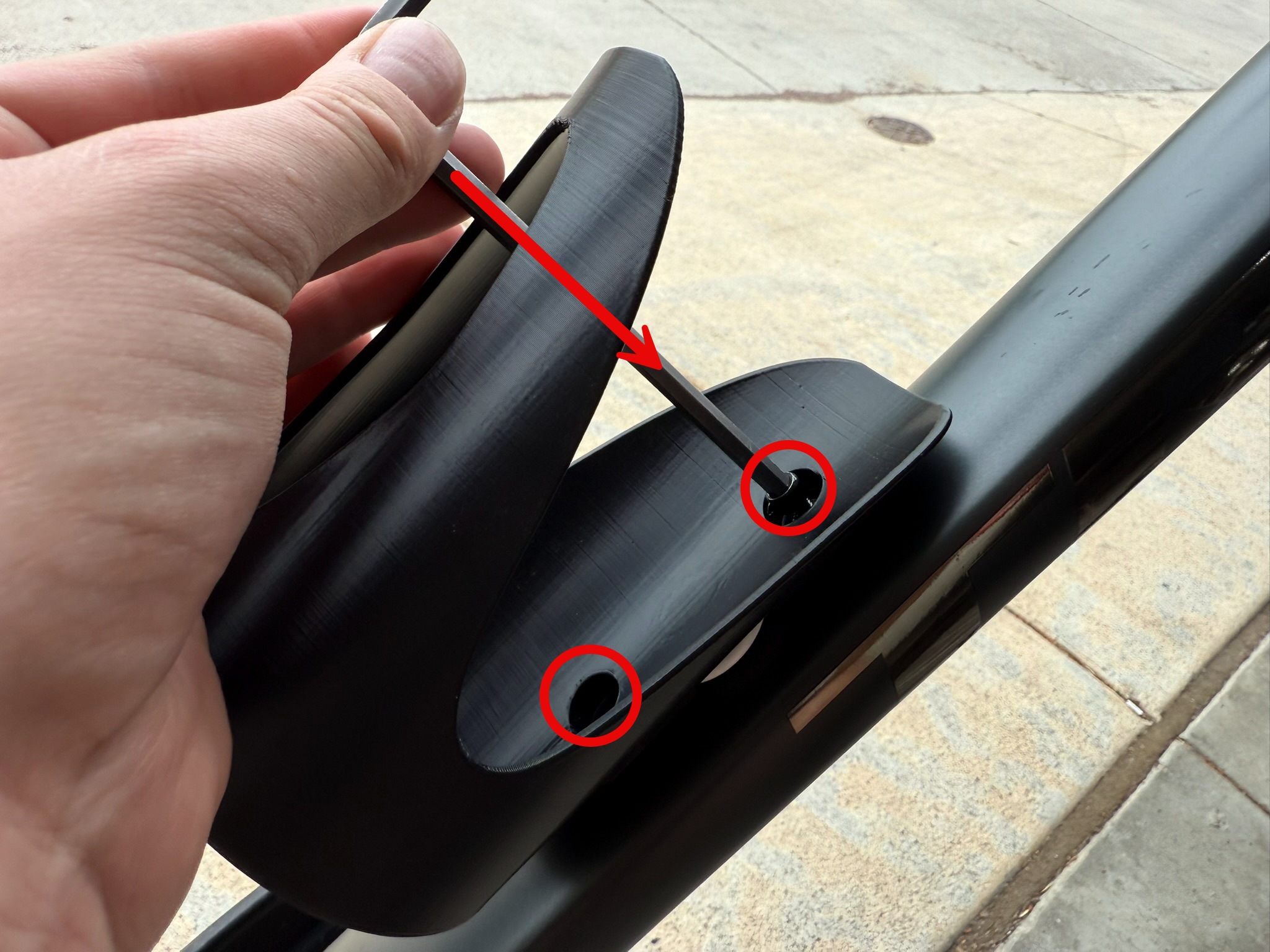

- Secure the bottle cage to your bike using the screws you removed in Step 2. The Allen key should be able to reach the screws through the front cutout of the cage.
- You're all set! Your bottle cage is installed and ready to ride.
FAQ
Will this fit my bike frame? Check the dimensions table above and measure your frame's clearance before ordering. Bikes with smaller frames may not accommodate larger bottles.
Can I use a bottle not listed in the variations? This is not recommended, as each cage is designed specifically for a particular bottle. If you have questions or would like to request a new cage variation, please reach out.
Is the AirTag pocket waterproof/weather resistant? The AirTag pocket is exposed to the elements, but the AirTag itself is water resistant.
Are mounting screws included? No. Mounting screws are typically specific to individual bikes, so you should reuse the screws from your existing bottle cage.
Materials
Printed with Bambu Lab ASA filament for excellent UV resistance and durability in outdoor conditions.
Returns
We accept returns within 30 days of delivery. The buyer is responsible for return shipping costs.
If you have any questions or run into issues, reach out to us at [email protected].
